Project "2025067" one Winding Machine. The scope of supply in present project refers to the manufacturing of one winding machine for the formation of superconductor coils, which are suitable to generate magnetic fields for the application in the world of nuclear researches.
The engineering has been developed by CMV’s customer. The concept of the winding machine allows the fine adjustment and set-up of the unit to handle the execution of coils with multiple radiuses, featuring a clockwise or counter-clockwise wrapping direction. The supply has included the execution of all the on-board systems for unit handling and the arrangement of winding tests for final equipment acceptance by the end-user.

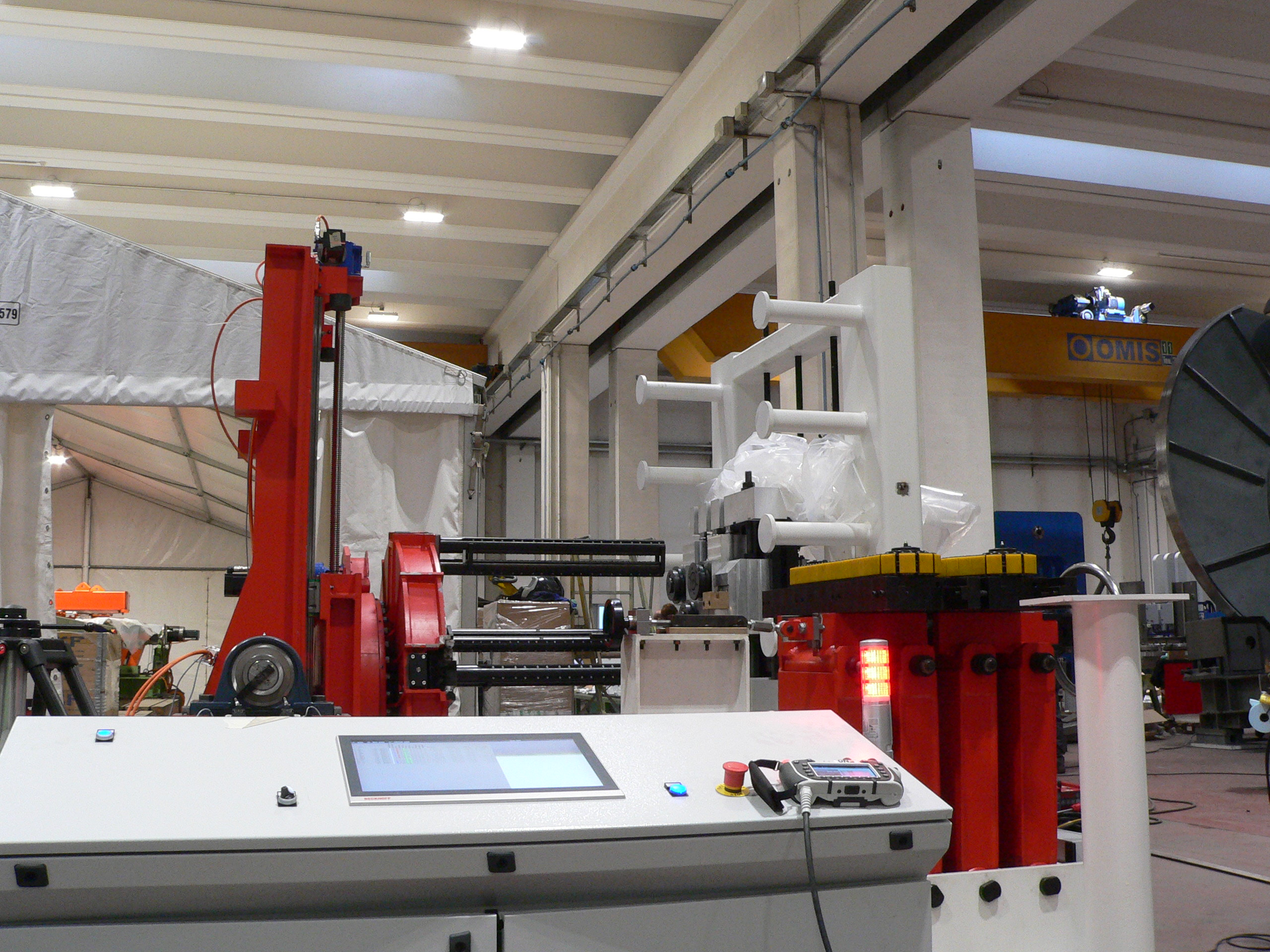

View of the whole winding machine with the arrangement of hydraulic and automation units for the execution of tests.
